Glass transporters - FEMAK - Golia 4500TS

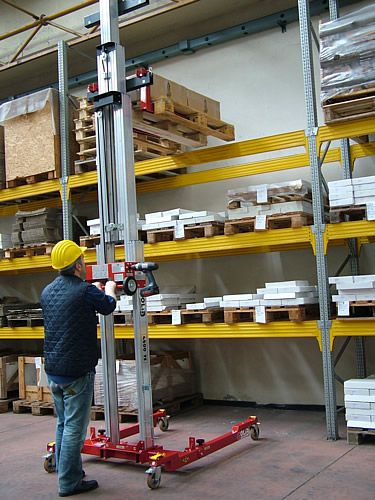

Golia 4500TS meets in simple, safe and economical way goods transport and lifting requirements in industrial and craft environments. It can easily lift loads up to 280 kg thanks to the reduction unit that can be operated either manually or by means of a drill-screwer. It is equipped with a handy handle and four large wheels to guarantee an easy safe load transport. The possibility to rotate the aluminium column 180° and to add the counterweight group allows to move jutting out weights and encumbering as glass sheets. The particular system allows to fold up 2 feet reducing the width only to 74 cm making easy also enter a door and transport on cars and small lorries.


Thanks to exclusive patented system, lifting and lowering of loads can be carried out by means of a drill (battery or electric) making it easy, fast and safe. In fact, in this way, we avoid the dangerous load waggle, characteristic of traditional winch systems. Machine is alway supplied with a hand crank for emergency.


Golia SlimGolia Slim

Standard equipment:

  • instruction / maintenance handbook case
  • reduction unit crank
  • reduction unit coupling
  • loading wheels

Optional accesories:

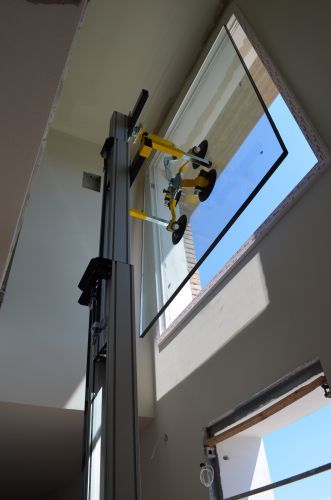

  • suction cups with a maximum load of 210 kg
  • rotary suction cups powered with 12 V (4 pcs.) with a max. load of 260 kg
  • rotating and tilting suction cups (4 pcs.) with a max. load of 260 kg
  • fold frame 1350 x 1700 mm
  • folding loading shelf 1500 x 400 mm
  • fork with hook L = 350 mm
  • swiveling mounted beam (+/- 20° left or right)
  • counterweight

Technical features:

  • net weight: 140 kg
  • minimum storage temperature: +2°C
  • minimum operating temperature: +5°C
  • maximum operating temperature: +45°C
  • relative humidity (non-condensing): 95%
  • maximum load: 280 kg
  • hight of raising: 445 cm
